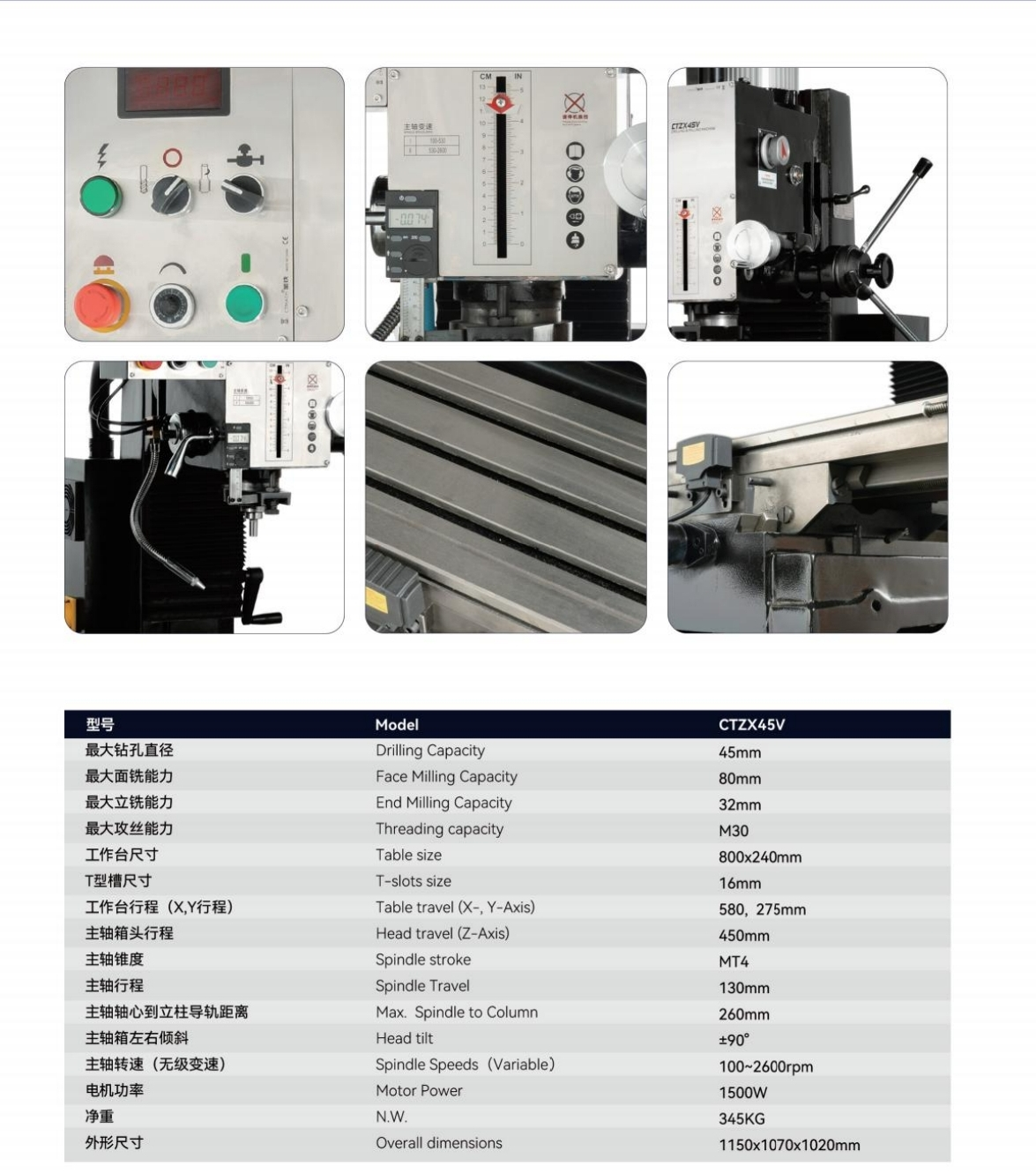

CTZX45V

Drilling Capacity 45mm

Face Milling Capacity 80mm

End Milling Capacity 32mm

Tapping Capacity M30

INDUSTRIAL BENCH

DRILLING AND MILLING MACHINE

1. The spindle box gear is quenched and imported SKF

bearings are used to improve service life and accuracy.

2. 1.5KW high-power spindle motor, high and low speed

gears, stepless spindle speed regulation,100~2600RPM.

3. High-precision and stable milling, high-strength easy

drilling, and limited automatic reverse tapping

4. Large work surface, manual precision grinding, one-piece

casting, T-shaped slot for convenient fixture fixing, and the

spindle head can be tilted 90° left and right.

5. The workbench and columns adopt dovetail

guide rails, and the tapered inserts adjust

the guide rail clearance. They are

wear-resistant, can be used for

heavy-load surface contact, and have

good rigidity.

6. The workbench can feed automatically.

7. This machine tool is suitable for factories, scientific research

units, maintenance shops and other places.
