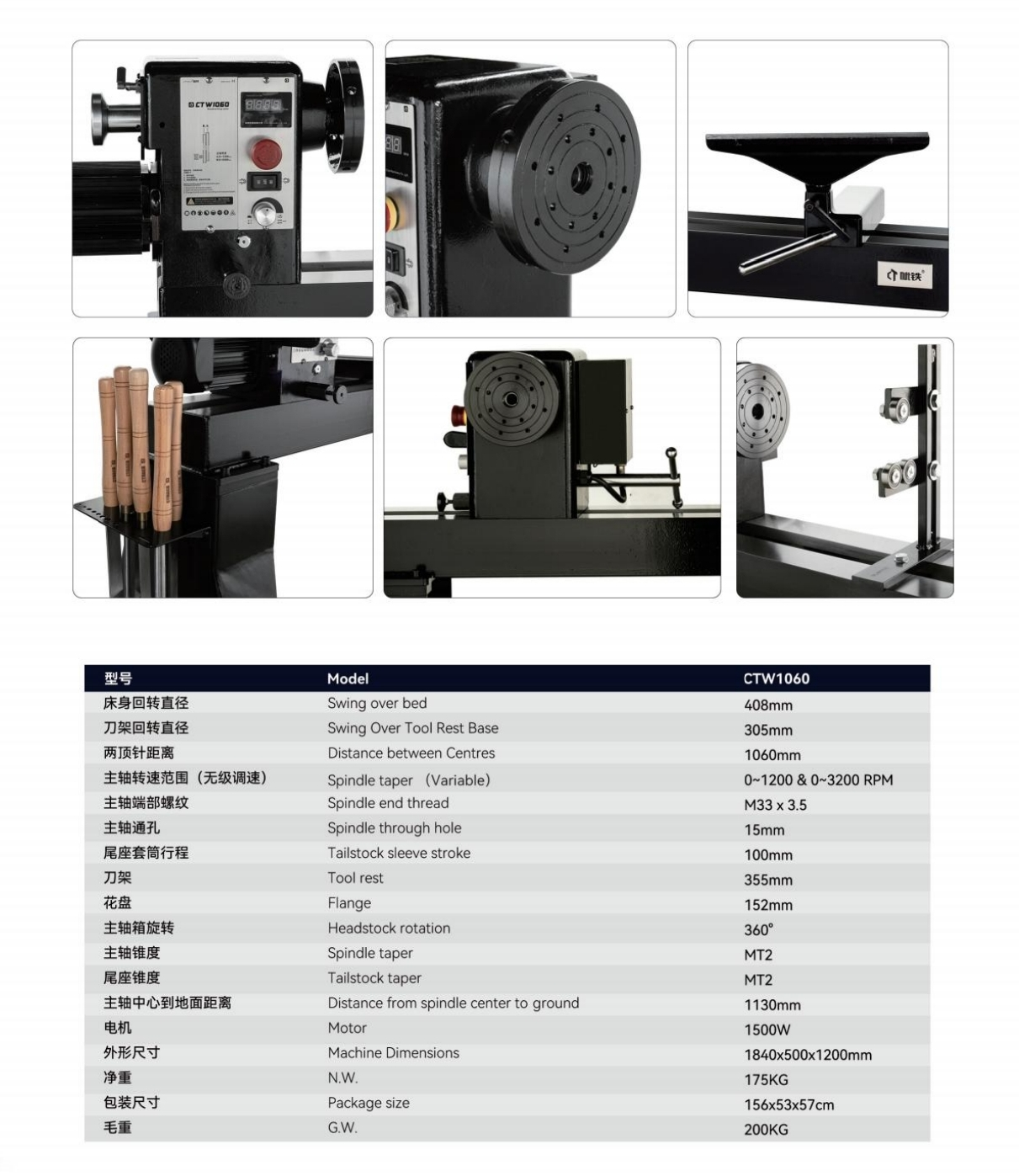

CTW1060

Multifunctional stepless speed control woodworking car

Large processing range, 1060mm ultra-long turning length, turning large disc type workpiece, just rotate the headstock, can be

realized, the main shaft of the machine

The distance to the ground is 1130mm, which is theoretically able to process a large-plate workpiece with a diameter of 2260mm.

1500W high power DC brushless motor, strong enough, strong stability;

Spindle stepless speed regulation, speed can be adjusted, up to 3200RPM;

Support spindle positive and negative rotation, convenient sanding;

Embedded spindle locking for quick fixture replacement. M33X3.5 spindle end thread can be equipped with other types of chuck;

Heavy load lengthening tool holder drag plate, so that the tool holder is free of movement, operation is extremely smooth.
