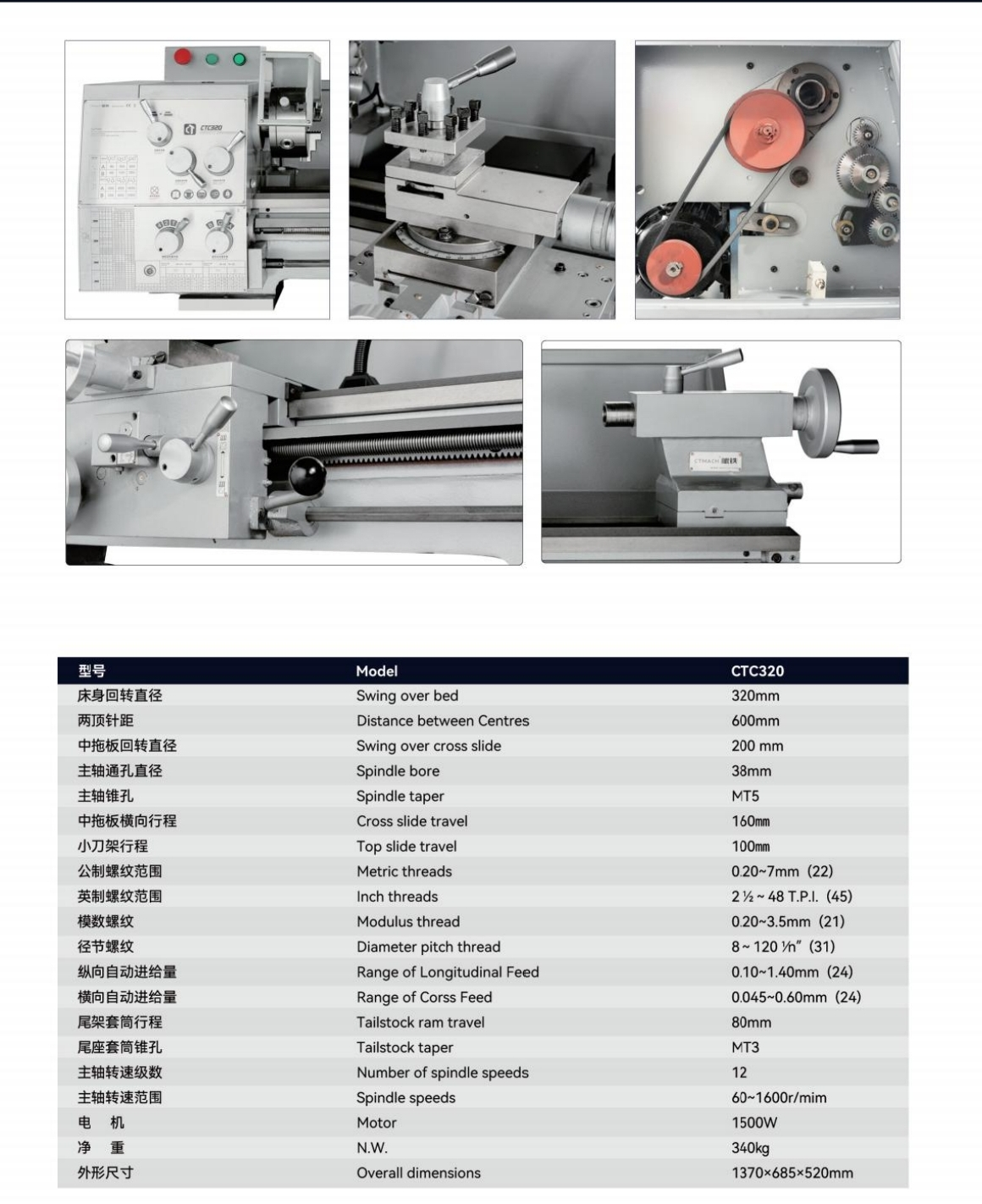

CTC320

Swing over bed 320mm

Swing over cross slide 200mm

Distance between centers 600mm

1. The spindle box gears are quenched and ground to greatly extend the service life of the gears and

reduce noise.

2. Full gear transmission, 12-speed gear transmission.

3. It is equipped with forward and reverse rotation of the screw rod, which can turn left and right hand

threads, and can automatically move the tool vertically and horizontally.

4. There is no need to replace the hanging wheel, and it can meet the needs of many different types of

tools and various pitches.

5. The vertical and horizontal feeding adopts an interlocking mechanism, which is safe.

6. The machine tool adopts double mountain guide rails, high-frequency quenching, high precision, good

rigidity and good wear resistance.

7.Tapered inserts can adjust the guide rail clearance.

8. Suitable for home workshops, light industry or educational purposes.
