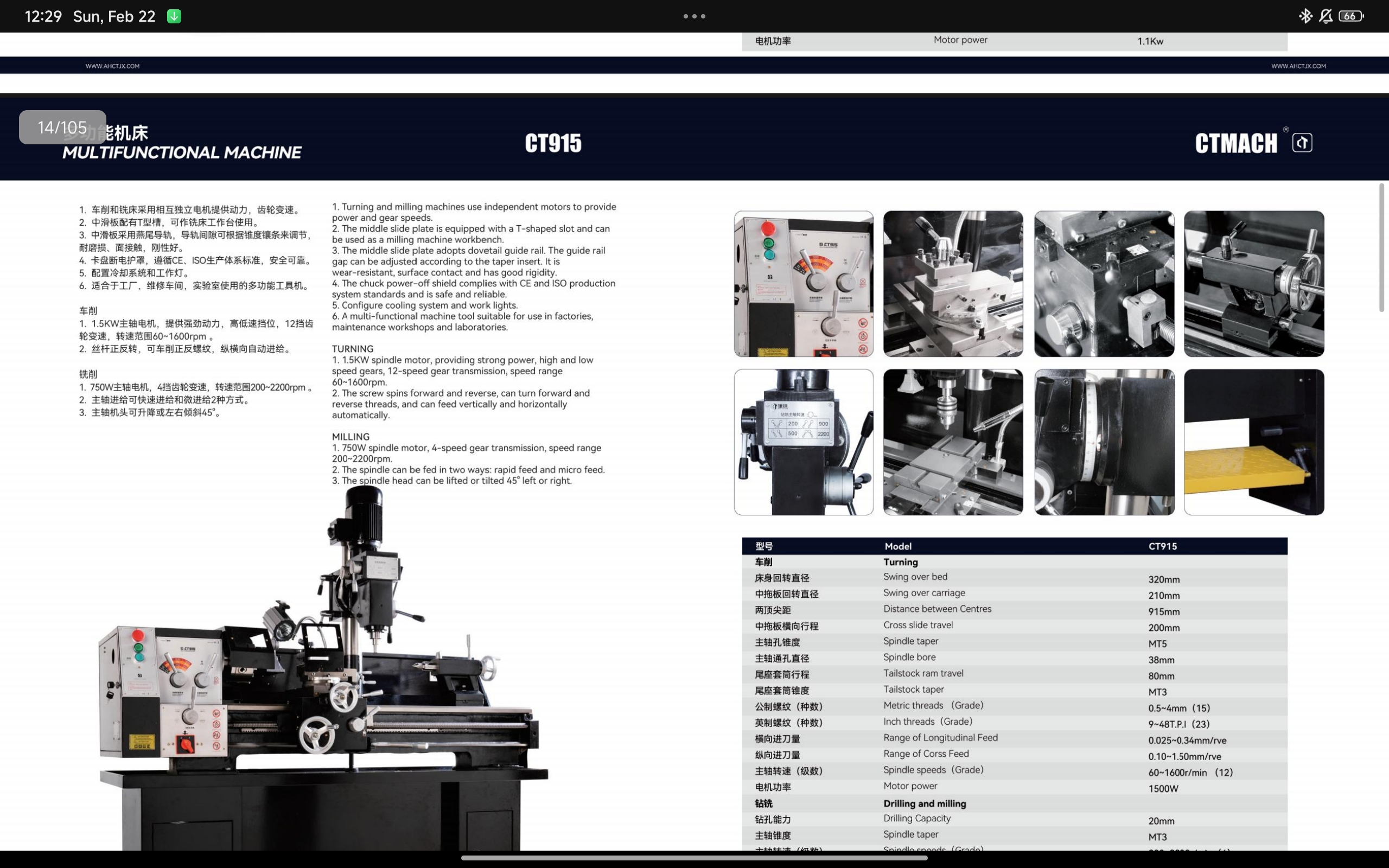

CT915

1. Turning and milling machines use independent motors to provide

power and gear speeds.

2. The middle slide plate is equipped with a T-shaped slot and can

be used as a milling machine workbench.

3. The middle slide plate adopts dovetail guide rail. The guide rail

gap can be adjusted according to the taper insert. It is

wear-resistant, surface contact and has good rigidity.

4. The chuck power-off shield complies with CE and iSO production

system standards and is safe and reliable.

5. Configure cooling system and work lights.

齿

6. A multi-functional machine tool suitable for use in factories,

maintenance workshops and laboratories.

TURNING

1.1.5KW spindle motor, providing strong power, high and low

speed gears, 12-speed gear transmission, speed range

60~1600rpm.

2. The screw spins forward and reverse, can turn forward and

reverse threads, and can feed vertically and horizontally

automatically.

MILLING

1.750W spindle motor, 4-speed gear transmission, speed range

200~2200rpm.

2. The spindle can be fed in two ways: rapid feed and micro feed.

3. The spindle head can be lifted or tilted 45° left or right.
