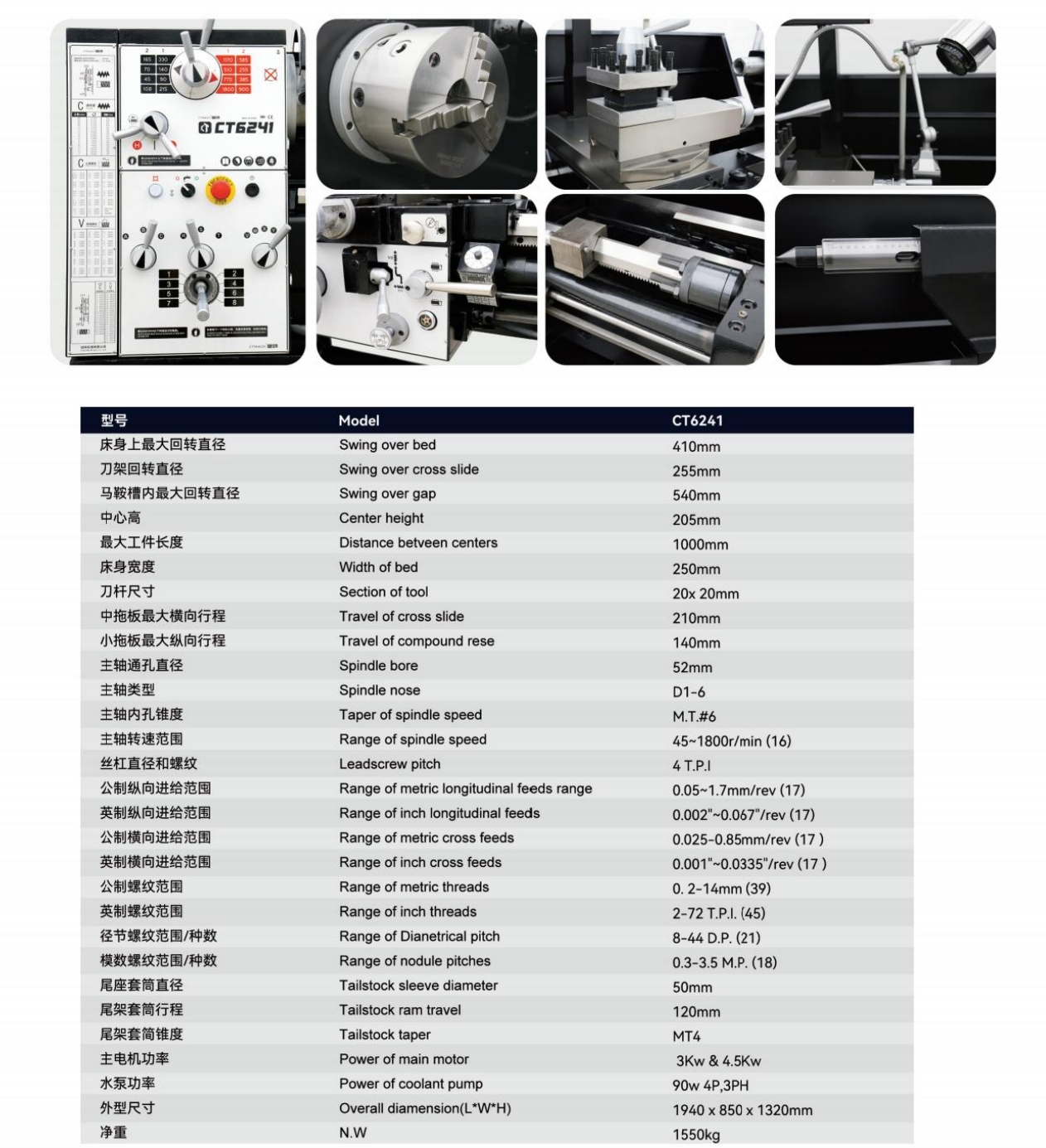

CT6241

Swing over bed 410mm

Swing over gap 580mm

Swing over cross slide 255mm

Distance between centers 1000mm

1. The whole machine weighs 1550KG, has a large processing range, high stability, strong rigidity, and exquisite appearance. It is a heavy-duty

high-precision lathe suitable for industrial purposes.

2. The spindle box gears are quenched and ground to greatly extend the service life of the gears and reduce noise.

3. High-power two-speed motor, full gear transmission, 16-speed gear transmission.

4. The spindle speed is equipped with an electric button, the screw rod rotates forward and reverse, and the vertical and horizontal automatic

forward and reverse tool feeding mechanism.

5. Various types of threads can be turned without changing the hanging wheel.

6. The machine tool adopts double mountain guide rails, high-frequency quenching, high precision, good rigidity and good wear resistance.

7.Tapered inserts can adjust the guide rail clearance.

8. Longitudinal tool limit and anti-collision knife device.

9. The heavy base cabinet is equipped with a spindle emergency stop foot brake
