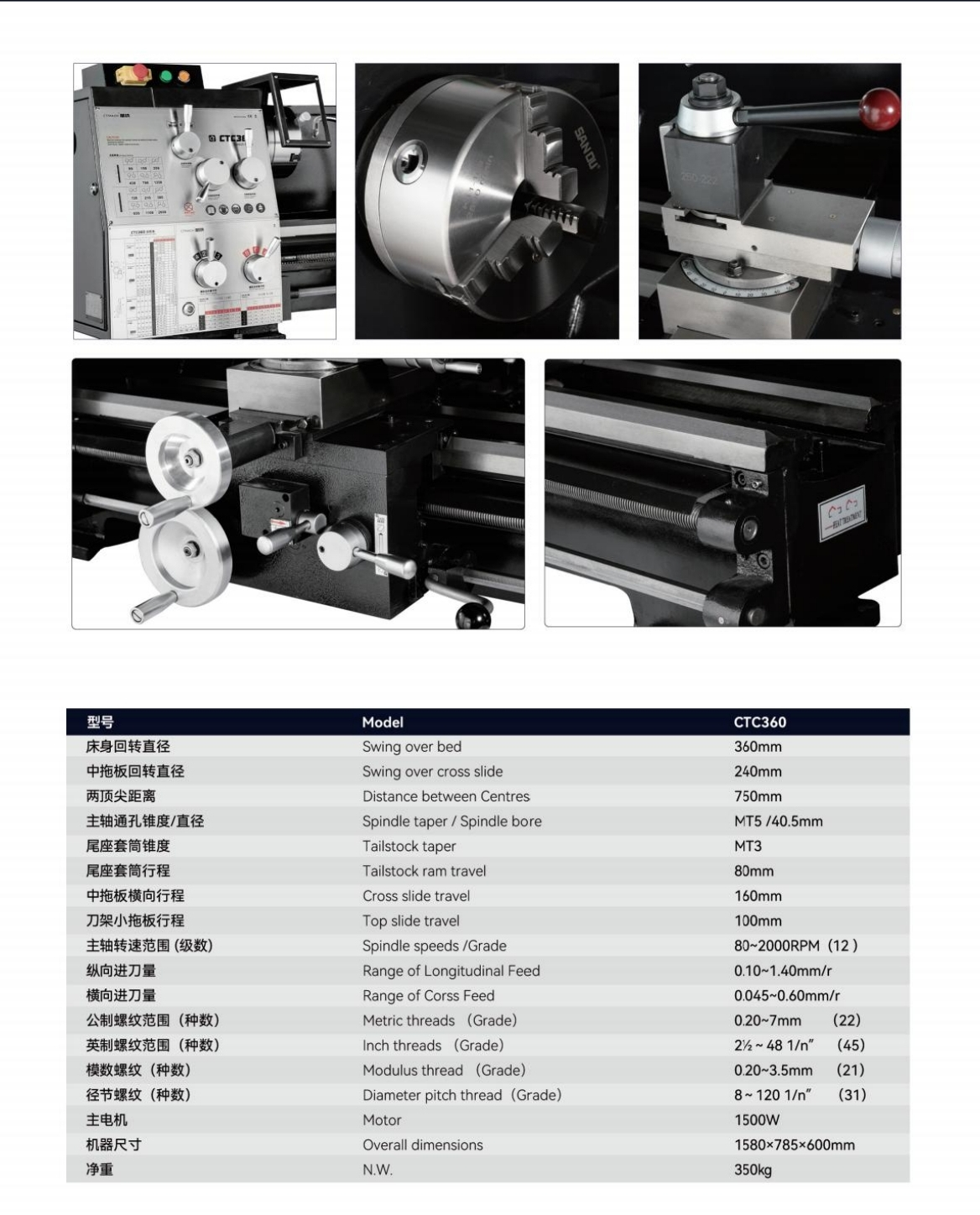

CTC360

Swing over bed 360mm

Swing over cross slide 240mm

Distance between centers 750mm

1. The spindle box gear is quenched and ground, which greatly improves the service life of the gear and

reduces noise.

2. The spindle adopts high-precision NSK bearings

3. Full gear transmission, 12 gear speed change.

4. It is equipped with screw forward and reverse rotation, which can turn left and right threads, and

automatically feed in the vertical and horizontal directions.

5. There is no need to replace the hanging wheel, which can meet the needs of various types of tools and

various pitches.

6. The vertical and horizontal feeding adopts an interlocking mechanism with good safety.

7. The machine tool adopts double mountain guide rails, high-frequency quenching, high precision, good

rigidity and good wear resistance.

8. The conical insert can adjust the guide rail gap.

9. Suitable for home workshops, light industry or educational purposes.
