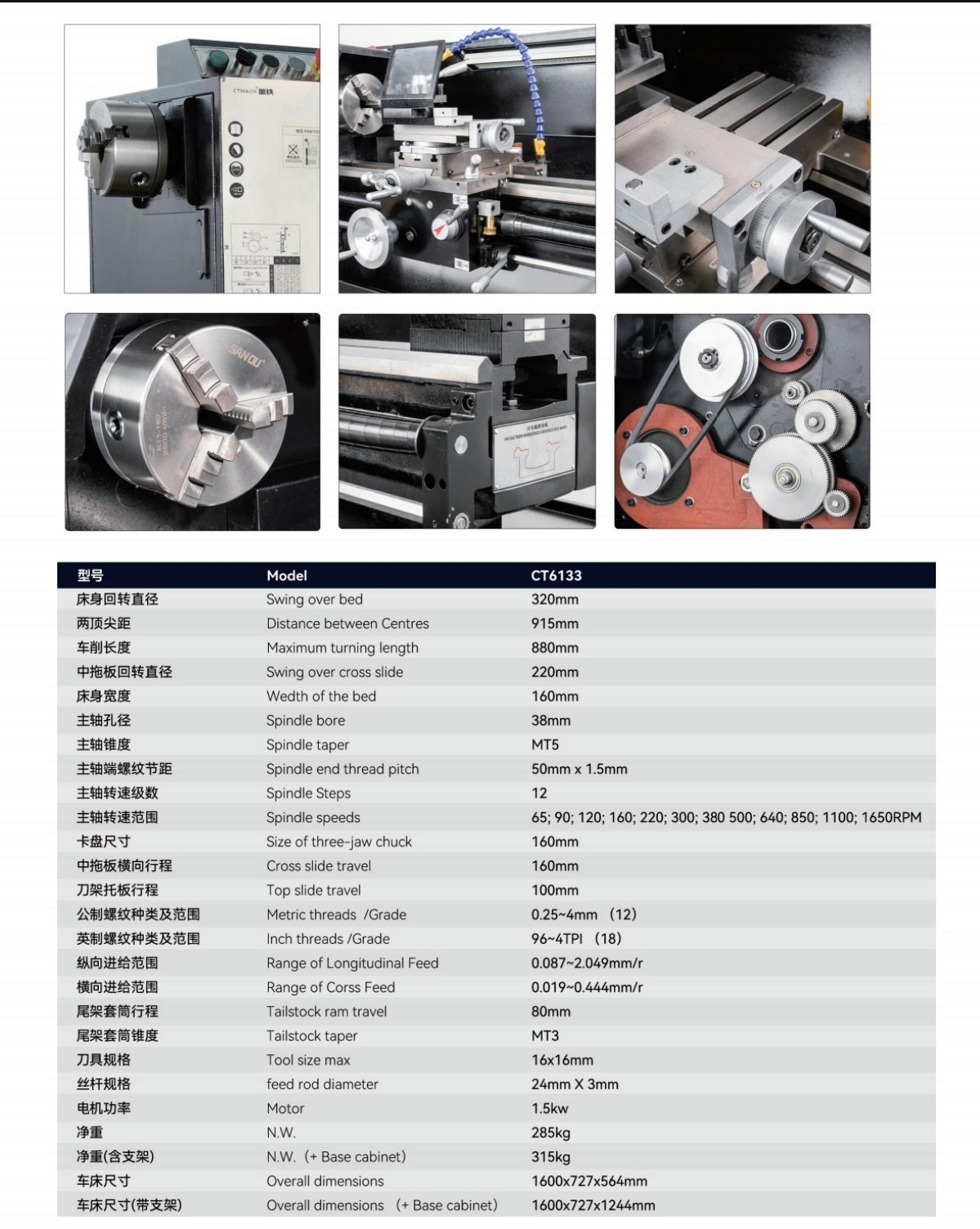

CT6133

Swing over bed 320mm

Double head chuck lathe

Swing over cross slide 220mm

Distance between centers 915mm

1. The spindle speed can be jogged, and the belt position can be changed and the spindle gear position can be ad-

justed to achieve 12-speed spindle speed change.

2. Automatic tool movement in the vertical and horizontal directions, can turn various threads for left and right ro-

tation, and emergency stop pedal.

3. The spindle box gear and bed guide rail are quenched and use imported SKF bearings with high precision, good

rigidity and high torque.

4. Comply with CE and ISO production standards, chuck power-off shield, safe and reliable operation.

5. Heavy and low cabinet, strong bearing capacity and high stability.
