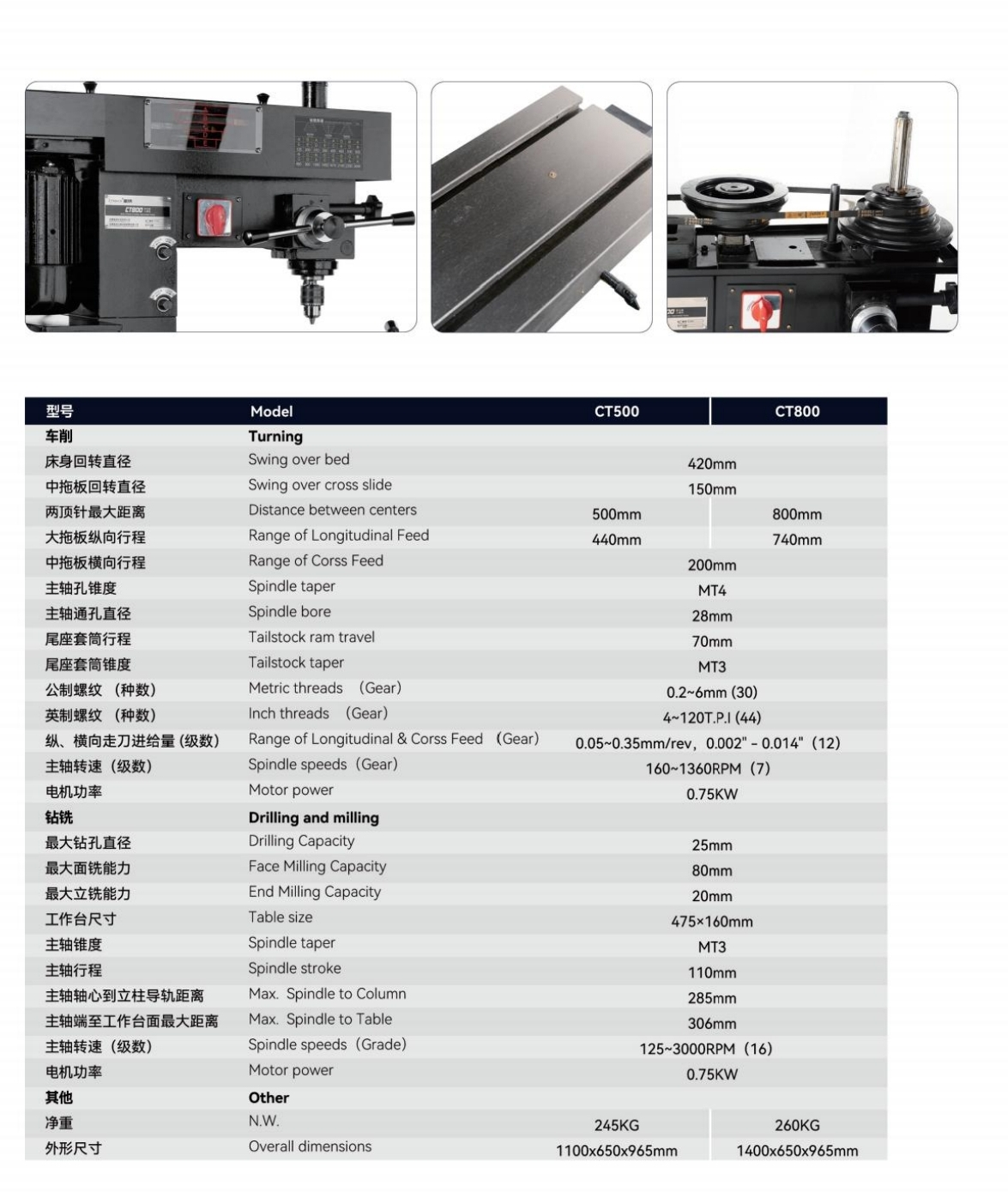

CT800

1. Dual motors, turning and milling motors are independent of each

other, and different speeds can be obtained by changing the belt

position.

2. The wide middle slide plate is equipped with a T-shaped slot and

can be used as a milling machine workbench. The tool rest slide

plate has the function of clamping the workpiece and can be

rotated 60°.

3. The middle slide plate adopts dovetail guide rail. The guide rail

gap can be adjusted according to the taper insert. It is

wear-resistant, surface contact and has good rigidity.

4. Follow CE and ISO production system standards, safe and

reliable.

5. A multifunctional machine tool suitable for home use,

maintenance workshops, and laboratories.

turning

1. Spindle 7-level spindle speed, speed range is 160~1360rpm.

2.It can turn inch and metric threads and automatically feed

vertically and horizontally.

Milling

1. Milling 17-level spindle speed, speed range 125~3000rpm.

2.The spindle can be fed in two ways: rapid feed and micro feed.
