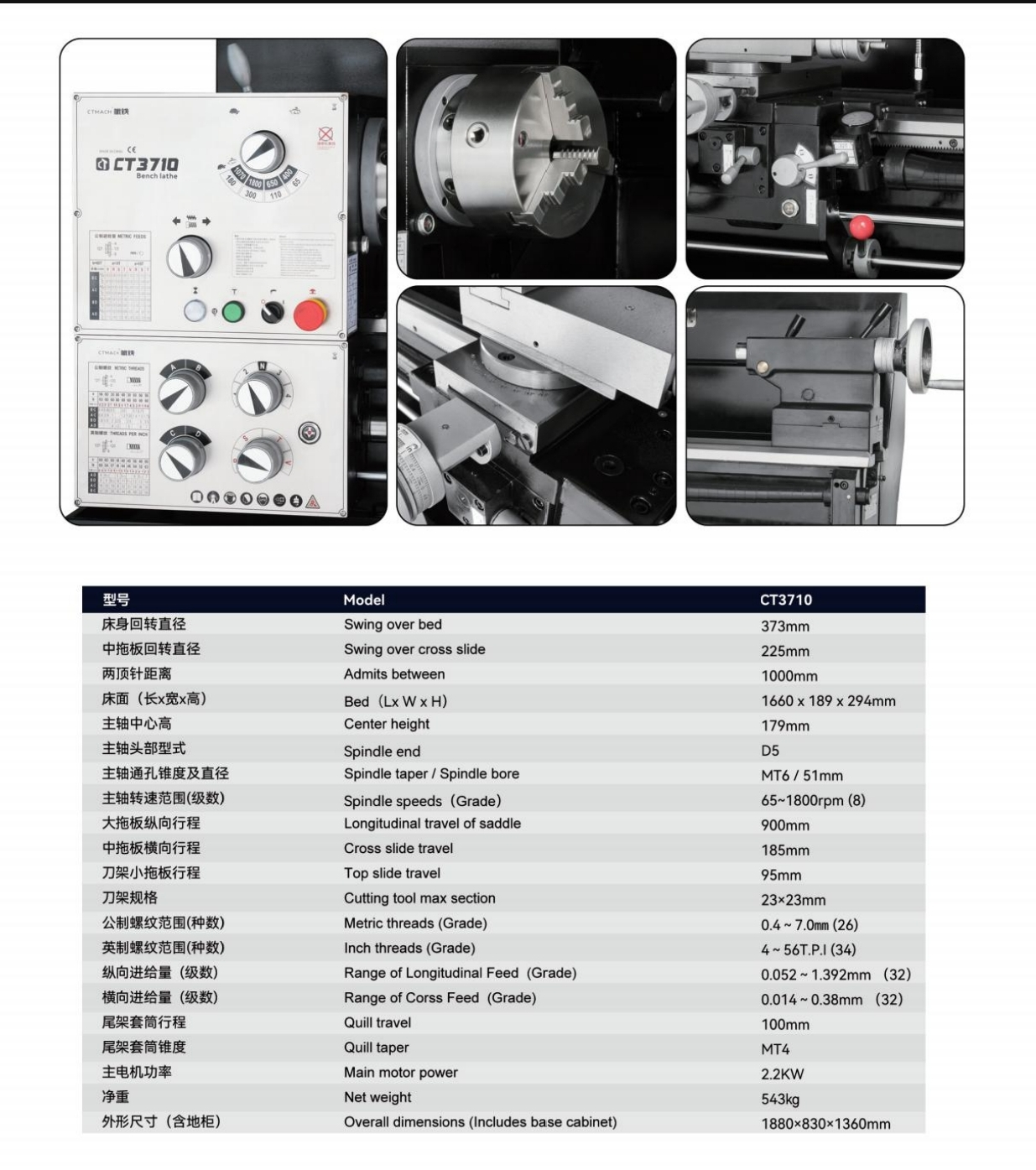

CT3710

Swing over bed 373mm

Swing over cross slide 225mm

Distance between centers 1000mm

1. The spindle uses NSK high-precision bearings, and the spindle box gear is quenched and ground;

2. The surface of the guide rail is finely ground after quenching and is durable;

3. Automatic longitudinal and transverse feed, tailstock transversely adjustable, used for turning taper;

4. Use tapered inserts to adjust rail clearance;

5. The spindle is equipped with a jog mode, and the machine tool is equipped with a cooling system and LED energy-saving

lamps;

6. Using a 1.5KW three-phase motor, a special design adds a high-quality inverter to achieve 220v voltage input, making it

convenient to use electricity and stable in operation;

7. The longitudinal guide rail is equipped with a limit device to prevent knife collision, and the base cabinet is equipped with

an emergency stop foot brake device;

8. The bed is made of high-strength cast iron to improve machine tool stability.
