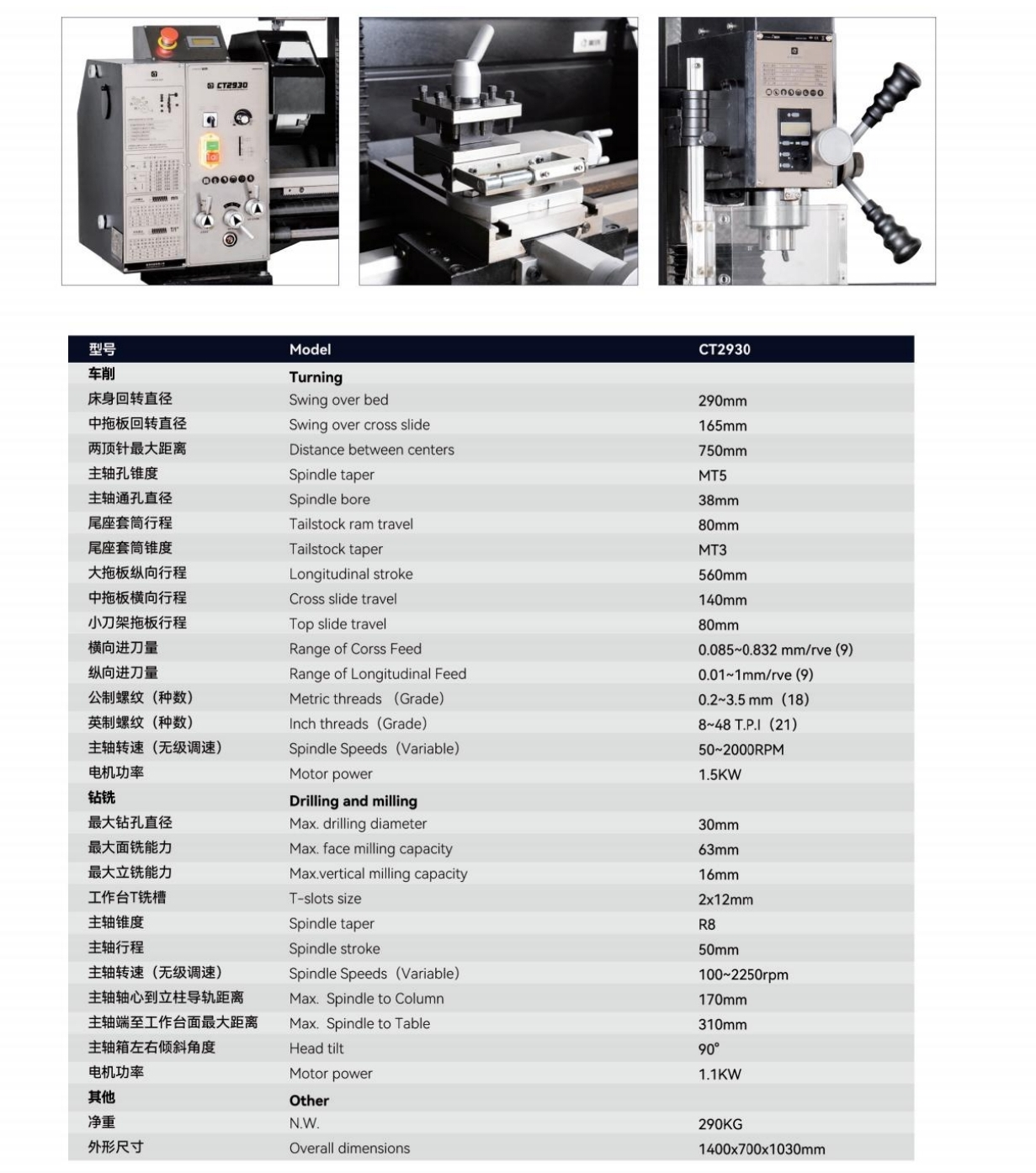

CT2930

1. High-power brushless DC motor, turning and milling machines

use independent motors to provide power, and the spindle speed

adopts stepless speed regulation.

2. The middle slide plate is equipped with a T-shaped slot and can

be used as a milling machine workbench.

3. The middle slide plate adopts dovetail guide rail. The guide rail

gap can be adjusted according to the taper insert. It is

wear-resistant, surface contact and has good rigidity.

4. Equipped with a three-axis digital display, the feed stroke can be

viewed.

5. The chuck power-off shield and turning anti-collision knife

device comply with CE and ISO production system standards,

making them safe and reliable.

6. A multi-functional machine tool suitable for use in factories,

maintenance workshops and laboratories.

TURNING

1.1.5KW spindle motor, stepless speed regulation of the spindle,

high and low gears can be switched by changing the belt position,

the speed range is 50~2000rpm.

2.Screw/polished rod switching, the screw can rotate forward and

reverse, can turn forward and reverse threads, and can feed

vertically and horizontally automatically.

MILLING

1. 1.1KW spindle motor, stepless speed regulation of the spindle,

high and low gears, speed range 50~2250rpm.

2. The spindle can be fed in two ways: rapid feed and micro feed.

3. The spindle head can be lifted or tilted 90° left or right.
