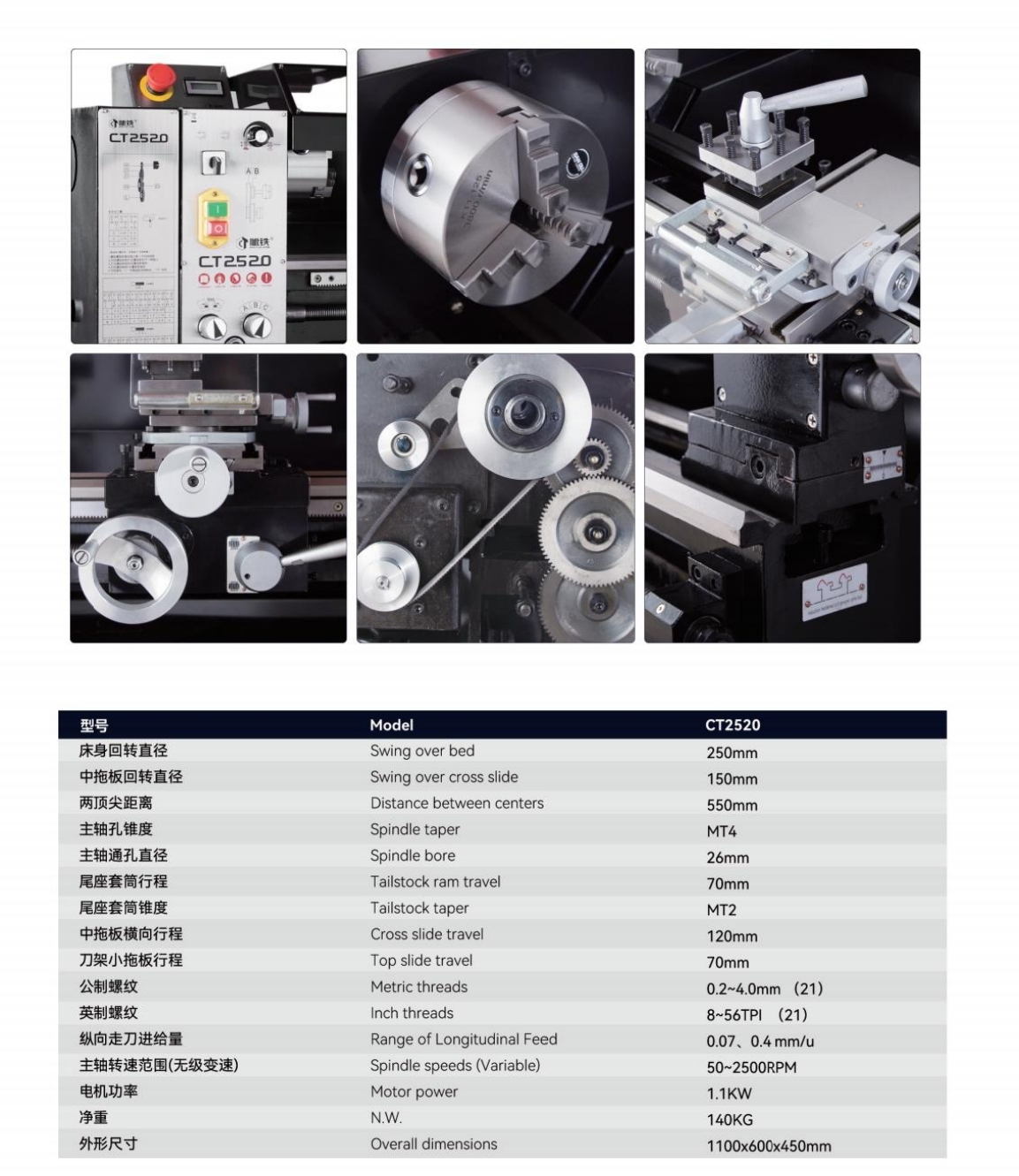

CT2520

Swing over bed 250mm

Swing over cross slide 150mm

Distance between centers 550mm

1, the whole machine 140KG, covers a small area, suitable for schools, scientific research units,

maintenance workshops and other places.

2, the use of imported SKF bearings, improve the service life and accuracy.

3, stepless speed regulation, belt switching high and low gear, 50~1250&100~2500rpm.

4, screw positive and negative turn, can be done right screw thread, longitudinal automatic cutting.

5, replace the gear, can turn a variety of male inch thread.

6, double V-shaped quenching guide rail, dovetail guide rail, built-in taper insert, adjustable, wear

resistance, heavy load, surface contact, good rigidity, high precision.

7, comply with the CE standard, headstock gear protective cover and chuck cover are powered off

protection device, operation and maintenance is safer.
