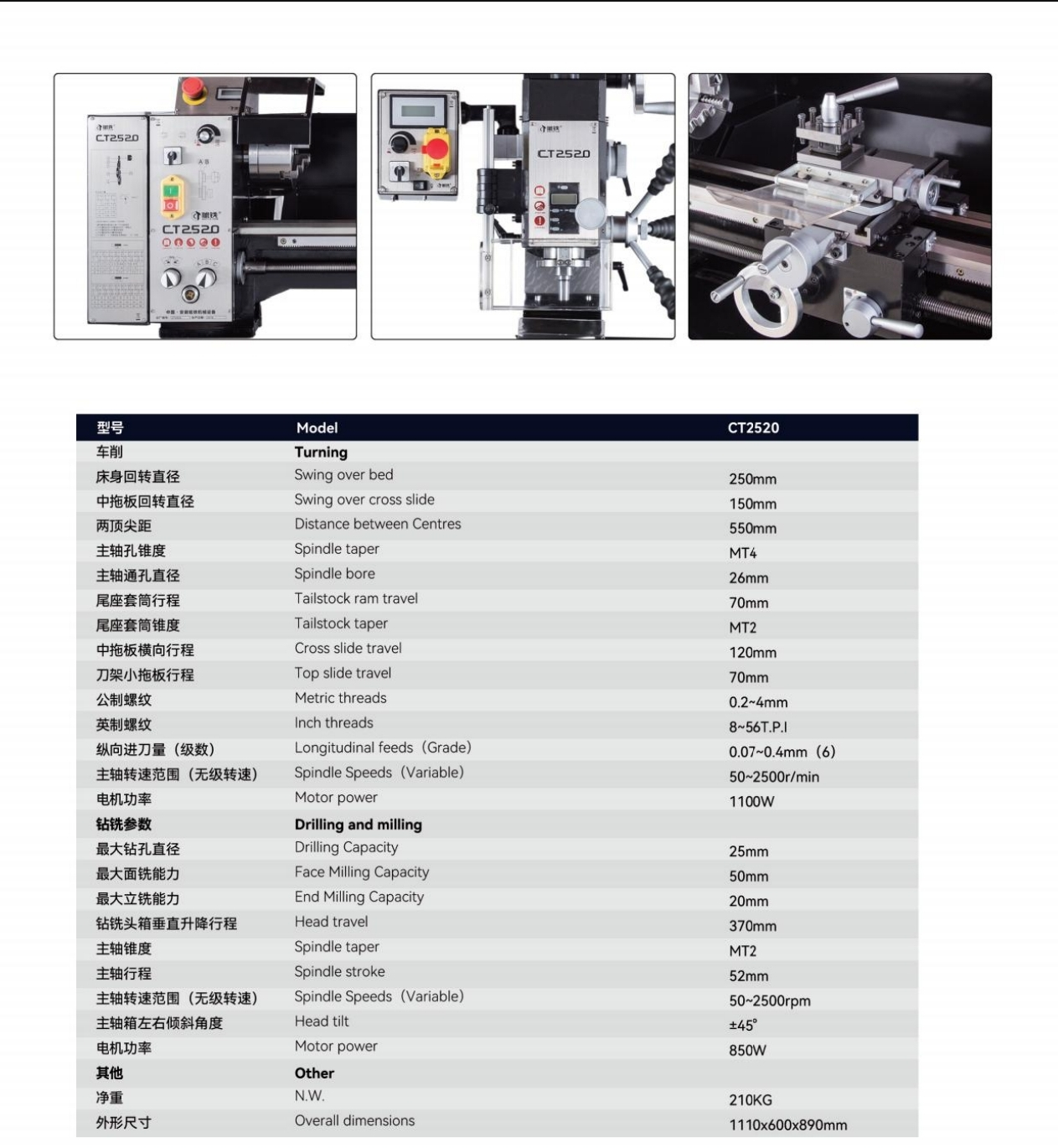

CT2520

1. The turning and milling machines use independent motors to

provide power, and the spindle speed adopts stepless speed

regulation.

2. The middle slide plate is equipped with a T-shaped slot and can

be used as a milling machine workbench.

3. The middle slide plate adopts dovetail guide rail. The guide rail

gap can be adjusted according to the taper insert. It is

wear-resistant, surface contact and has good rigidity.

4. Follow CE and ISO production system standards, safe and

reliable.

5. Multifunctional machine tool suitable for use in factories,

maintenance workshops, and laboratories.

TURNING

1. 1.1KW spindle motor, stepless speed regulation of the spindle,

high and low gears can be switched by changing the belt position,

the speed range is 50~2500rpm.

2. It can turn inch and metric threads and automatically feed

longitudinally.

MILLING

1.850W spindle motor, stepless speed regulation of the spindle,

high and low gears, speed range 50~2500rpm.

2. The spindle can be fed in two ways: rapid feed and micro feed.

3. The spindle head can be lifted or tilted 45° left or right.
