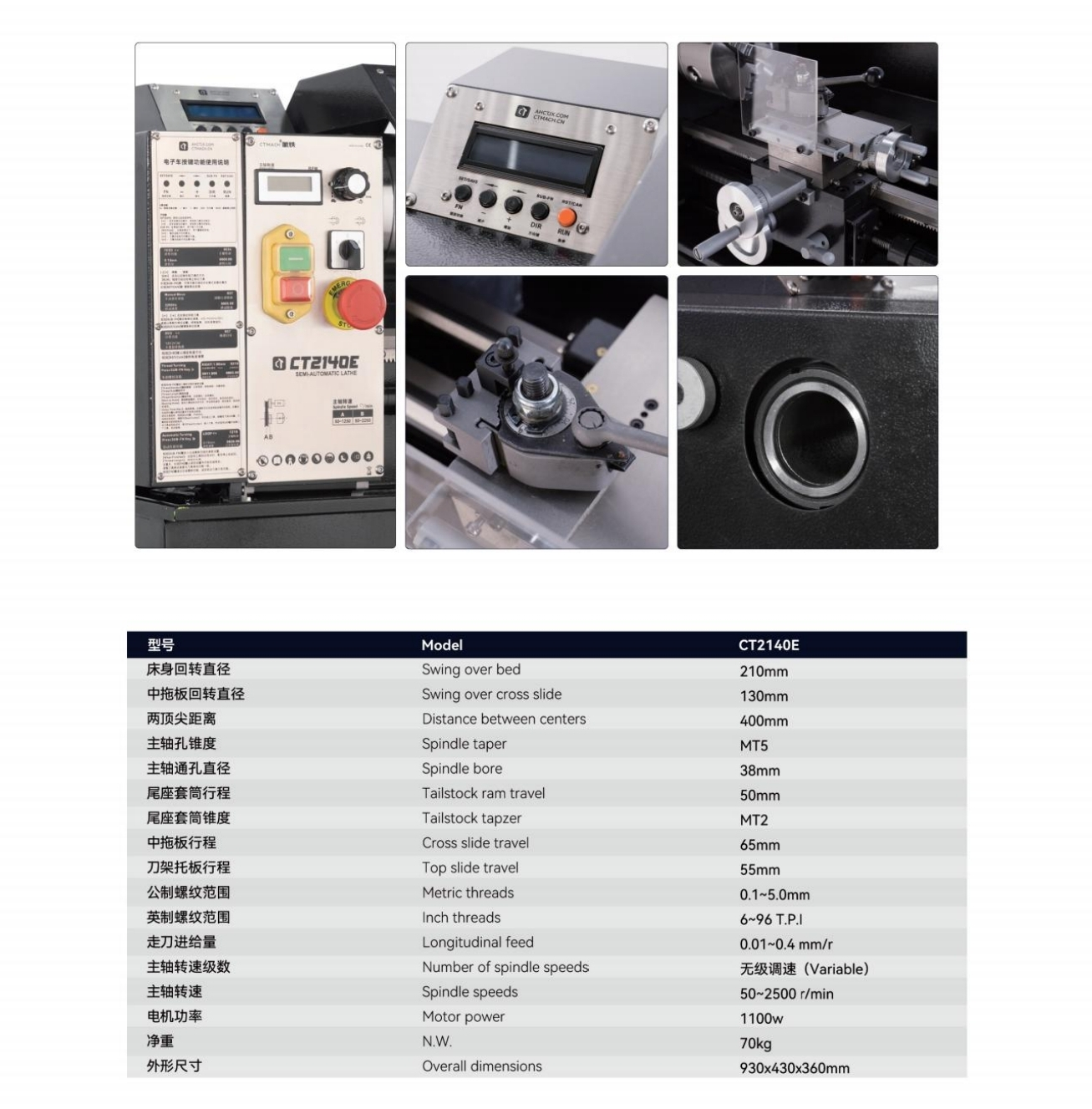

CT2140E

 over bed 210mm

Swing over cross slide 130mm

Distance between centers 400mm

1. The whole machine weighs 70kg, occupies a small area and has a wide range of applications.

2. Intelligent control of tool feeding and thread turning, no need to install a hanging wheel, it can work, and the operation

is simple.

3. Imported SKF bearings are used to improve service life and precision.

4. The bed is high-frequency quenched, with high-precision double V-shaped guide rails, which are wear-resistant,

stable and high-precision.

5.125mm three-jaw chuck, 38mm spindle large through hole.

6. 1.1KW high-power motor, the spindle adopts stepless speed regulation, 50~1250&100~2500RPM, which is

convenient for processing different workpieces.

7. This machine is equipped with a European quick-change tool holder, which is convenient and fast to change tools.
