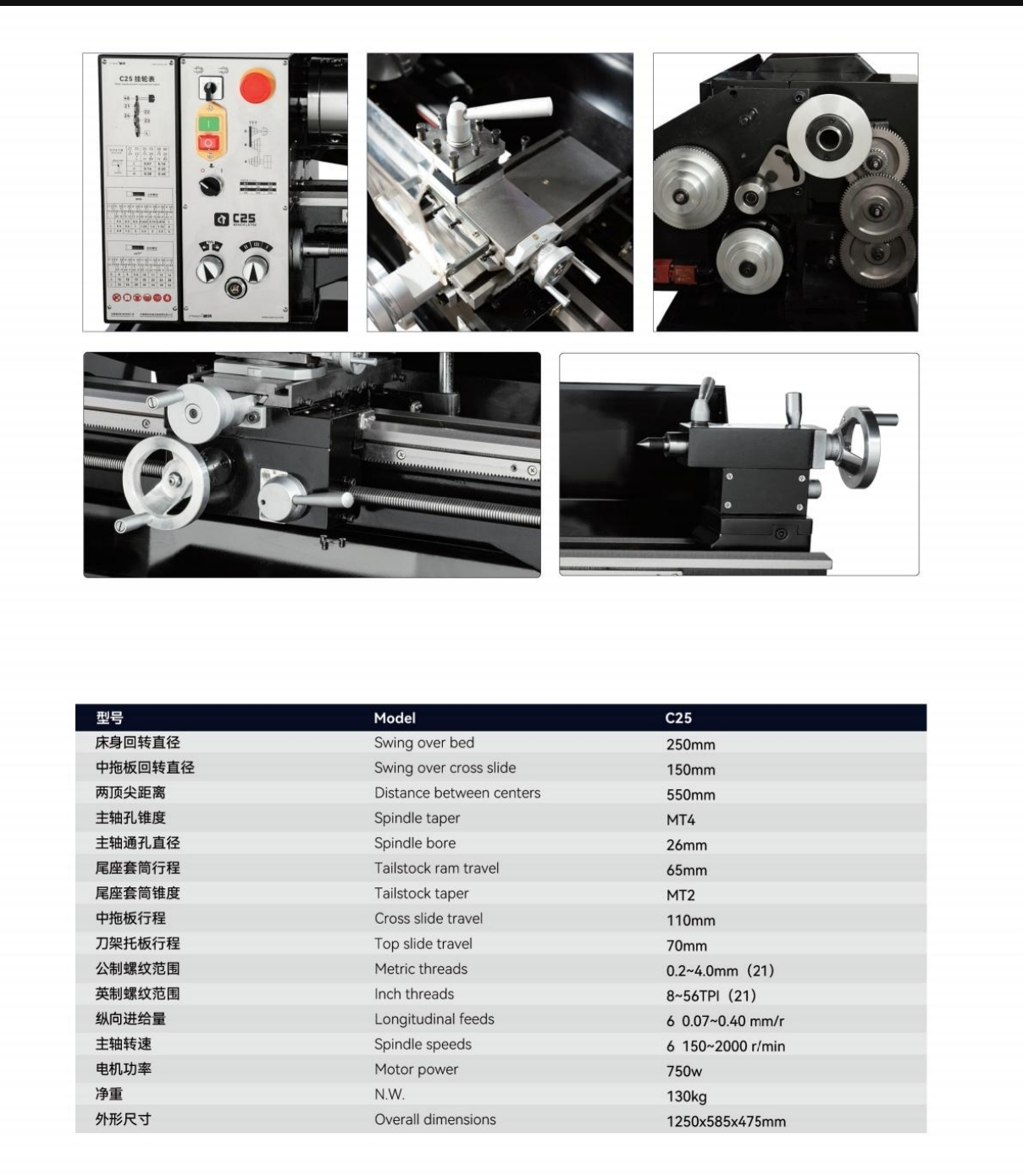

C25

Swing over bed 250mm

Swing over cross slide 150mm

Distance between centers 550mm

1. The whole machine weighs 130kg, occupies a small area, and has a wide range of applications.

2. Use imported SKF bearings to improve service life and accuracy.

3. Belt drive, light sound, 6-speed transmission can be obtained by changing the belt position, minimum

150rpm, maximum 2000rpm.

4. Positive and reverse threads can be turned, and there are many types of turning threads.

5. Double V-shaped quenching guide rail, stable and high precision.

6. CE safety standard, gearbox protective cover and spindle protective cover adopt power-off protection

devices, making shutdown maintenance safer.

7.Schools, science and innovation centers and research units teaching demonstration use, suitable for home

DIY, model parts, clock parts processing.
